Description
- Hign-concerned Chemical: None
- Chip: ESP32
- Frequency: 915MHz
- Package: Yes
- Model Number: Meshtastic T-Beam
- Compatible Audio & Video Equipment Style: Professional Audio Equipment
- Type: Bluetooth,WIFI
- Brand Name: lilygo
- Origin: Mainland China
- Certification: CE,FCC
- Product type: Cooperative Products
- Cooperating Engineer: Meshtastic
- Master Chip: ESP32
- Wireless: LoRa Module
- LoRa Frequency Band: 433Mhz 868Mhz 915Mhz 923Mhz
- Wireless Standard: Low-power local area network
- Support 1: for Arduino,Wholesale Module,Custom Made
- Support 2: esp32 with display
- Support 3: esp32 lora
- NoSolder 433 CP2104: H255-03+L206
- NoSolder 868 CP2104: H242-03+L206
- NoSolder 915 CP2104: H254-03+L206
- NoSolder 923 CP2104: L419-03+L206
- NoSolder 433 AXP192: Q158+L206
- NoSolder 433 AP2101: Q395+L206
- NoSolder 868 AXP192: Q401+L206
- NoSolder 868 AP2101: Q401+L206
- NoSolder 915 AXP192: Q202+L206
- NoSolder 915 AP2101: Q398+L206
- NoSolder 923 AXP192: Q209+L206
- NoSolder 923 AP2101: Q399+L206
- Solder 433 AXP192: Q350
- Solder 433 AXP2101: Q408
- Solder 868 AXP192: Q352
- Solder 868 AXP2101: Q410
- Solder 915 AXP192: Q349
- Solder 915 AXP2101: Q407
- Solder 923 AXP192: Q351
- Solder 923 AXP2101: Q409

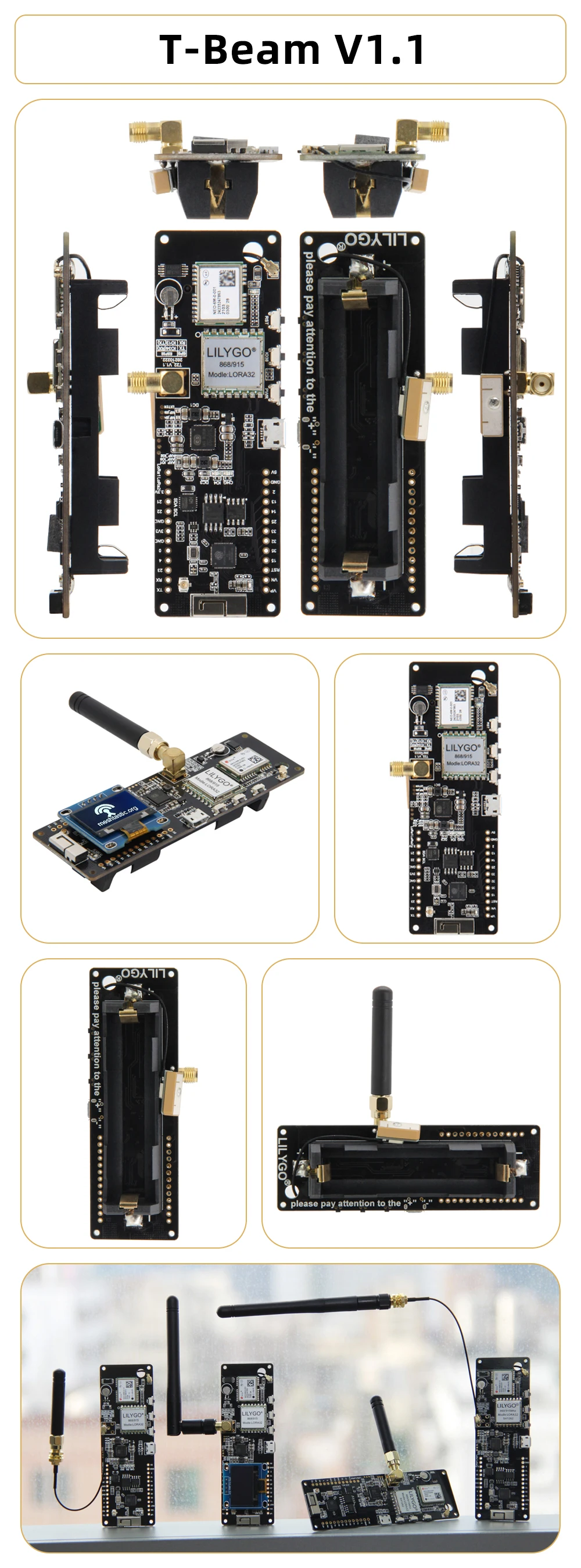

April 13, 2022 Meshtastic T-Beam V1.1
Meshtastic T-Beam V1.1 released OLED soldered version on April 13, 2022.
This version solder the will OLED on the T-Beam motherboard when it ships to save you time.
June 28, 2023 Meshtastic T-Beam V1.2

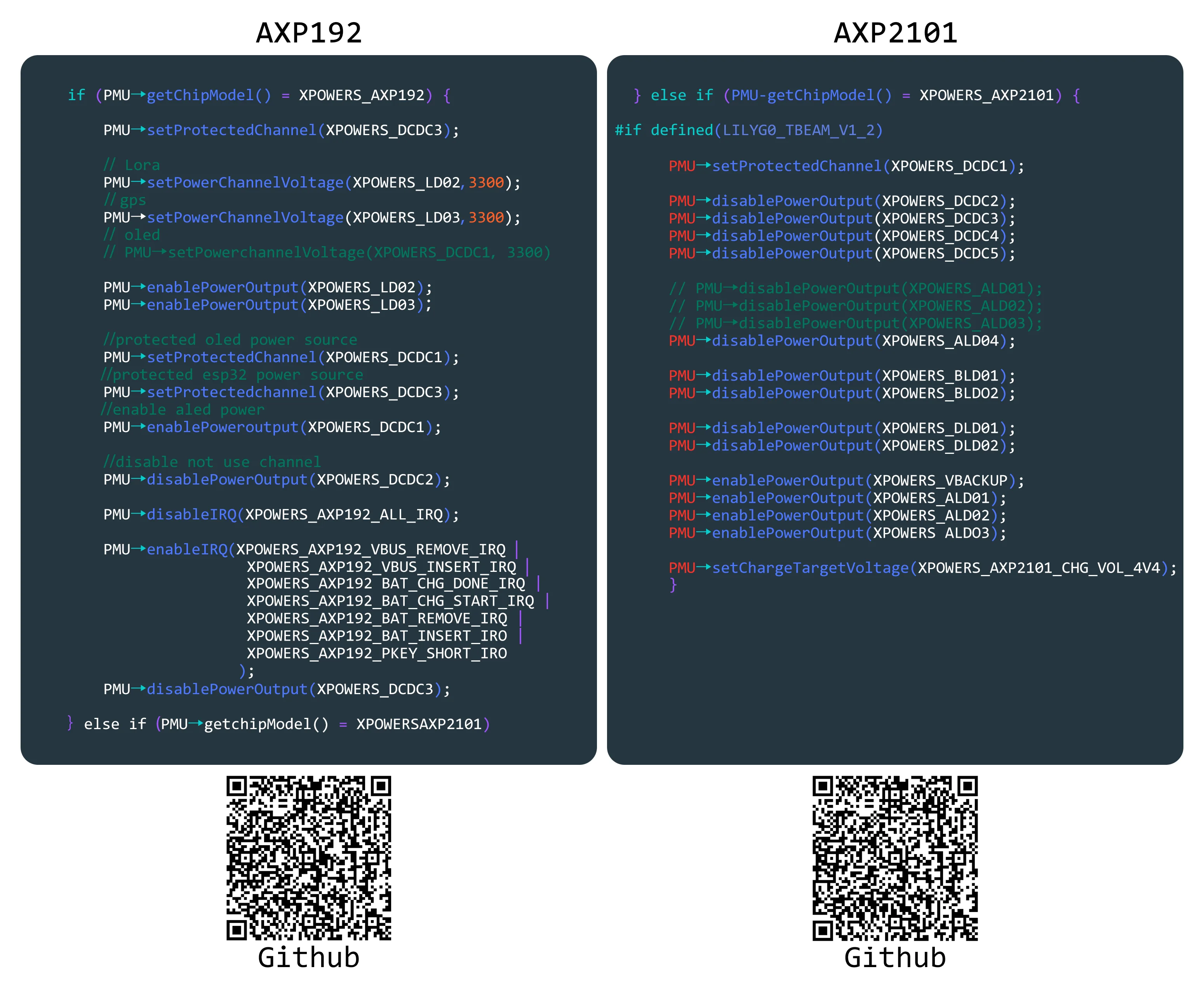

Since AXP192 is out of production, it has been replaced by AXP2101 now. The old and new versions will be delivered randomly.
Meshtastic T-Beam | |
MCU | ESP32 |
Flash | 4MB |
Serial Chip | CH9102 |
PMU | AXP2101 |
Wireless Protocol | Wi-Fi+Bluetooth 4.2 |
Onboard Functions | 3 Button(Power+IO38+Reset) |

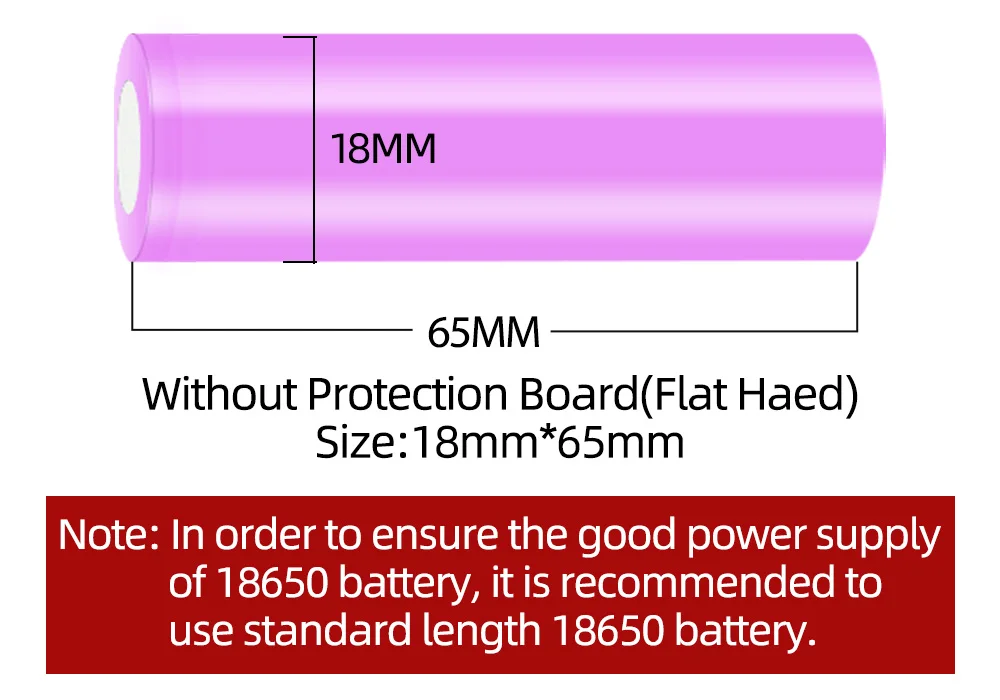

Power Supply Mode | Support USB / 18650 Battery |
NEO-6M GPS Modules | Support GPS Protocol |
Onboard RTC Crystal | |
Support Interrupt / Wakeup | |
Long Range Low Power LoRa Transceiver | |
High Sensitivity | -148 dBm |
Transceive Rate | 300 kbps |
Optional Version | SX1278 / SX1276 |
Power Amplifiers | +14dBm |
TX Current | 120mA |
RX Current | 9.9mA |
Programmable Bit | 300 kbps |
Oscillator | TCXO |
Frequency model comparison | ||
Hardware | SX1278 | SX1276 |
Software | Meshtastic 433MHz Version | Meshtastic 868/915/923 MHz Version |
0.96 Inch OLED Parameters | |||
Size | 0.96 inch | High resolution | 128 * 64 |
Driver IC | SSD1306 | Color | White |
More information
Not Soldered OLED | ||
433/868MHz Antenna | 915/923MHz Antenna | What’s in the box? |
|
| 1 X Meshtastic T-Beam |
1 X LoRa Antenna | ||
1 X 0.96-inch OLED | ||
2 X Pin | ||
Note: OLED is not soldered to T-Beam | ||
Soldered OLED | ||
433/868MHz Antenna | 915/923MHz Antenna | What’s in the box? |
|
| 1 X Meshtastic T-Beam |
1 X LoRa Antenna | ||
1 X 0.96-inch OLED (Soldered) | ||
2 X Pin | ||
Note: The OLED is soldered to T-Beam | ||
